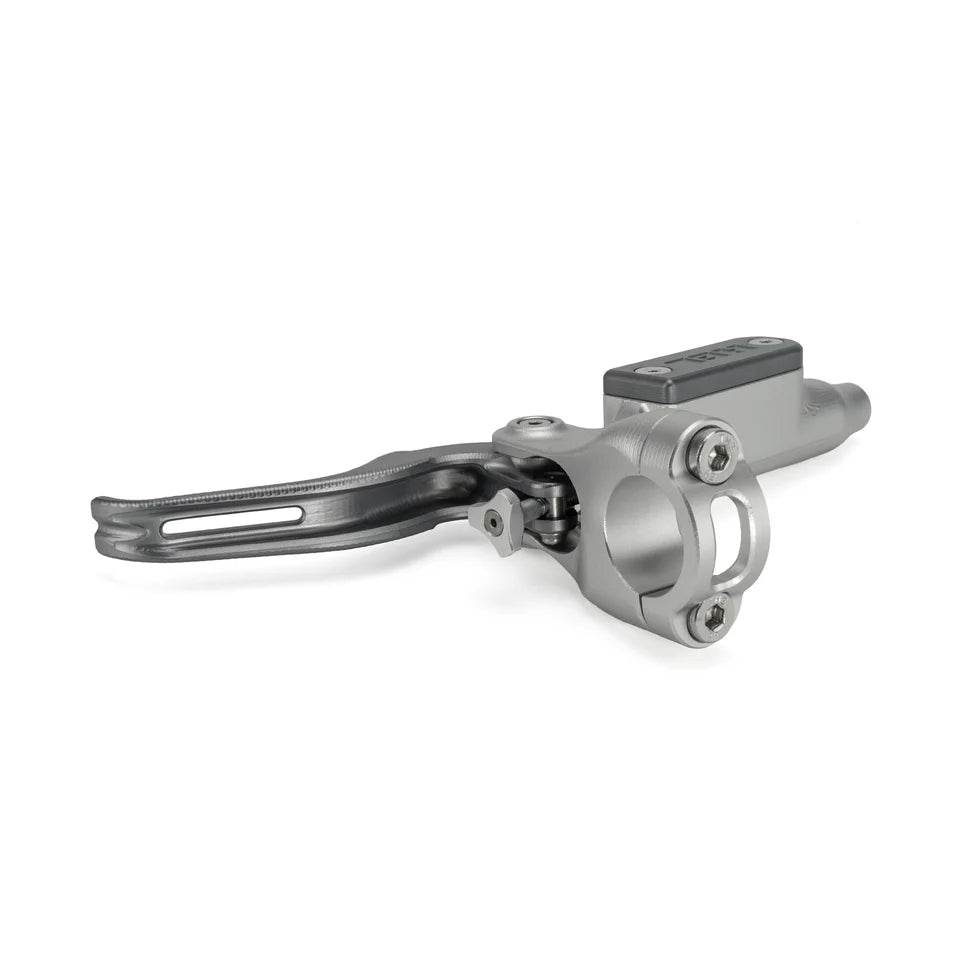

• HEL Advocate 4-piston hydraulic brake lever in silver and grey showing CNC-machined master cylinder and lever blade

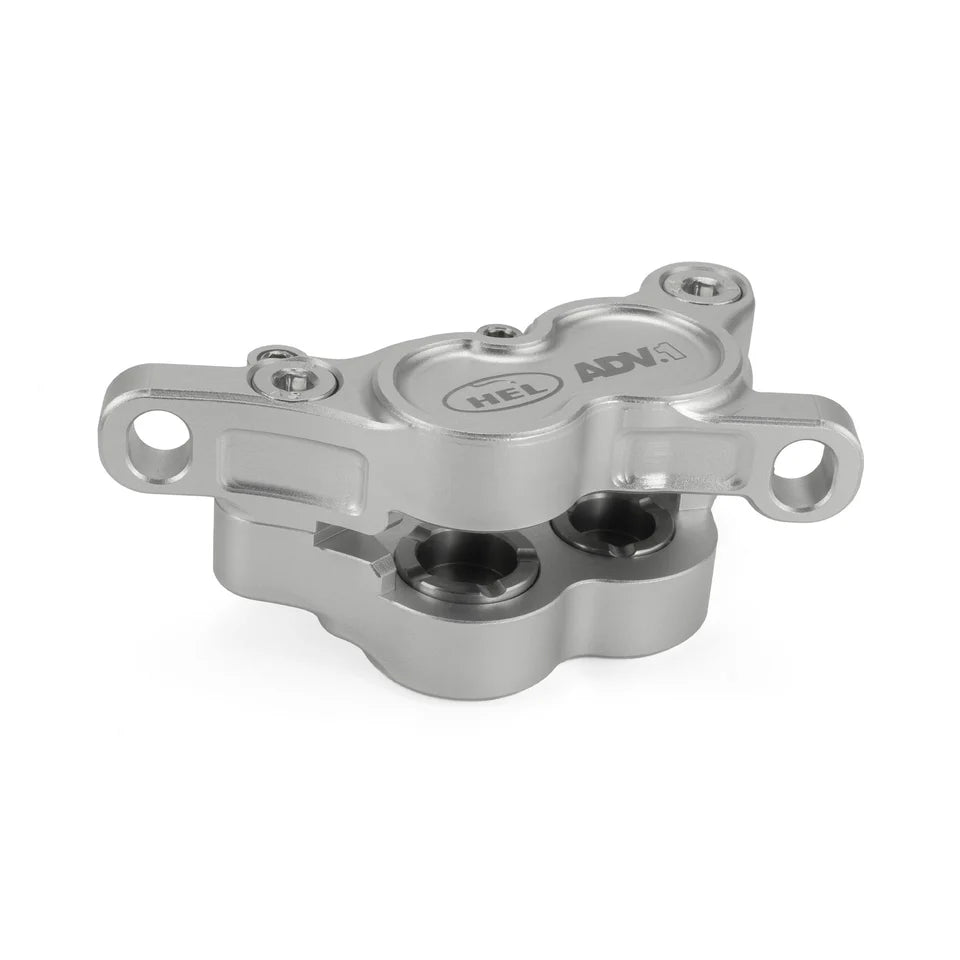

  • HEL Advocate ADV.1 4-piston brake caliper in silver and grey front view showing CNC-machined billet construction

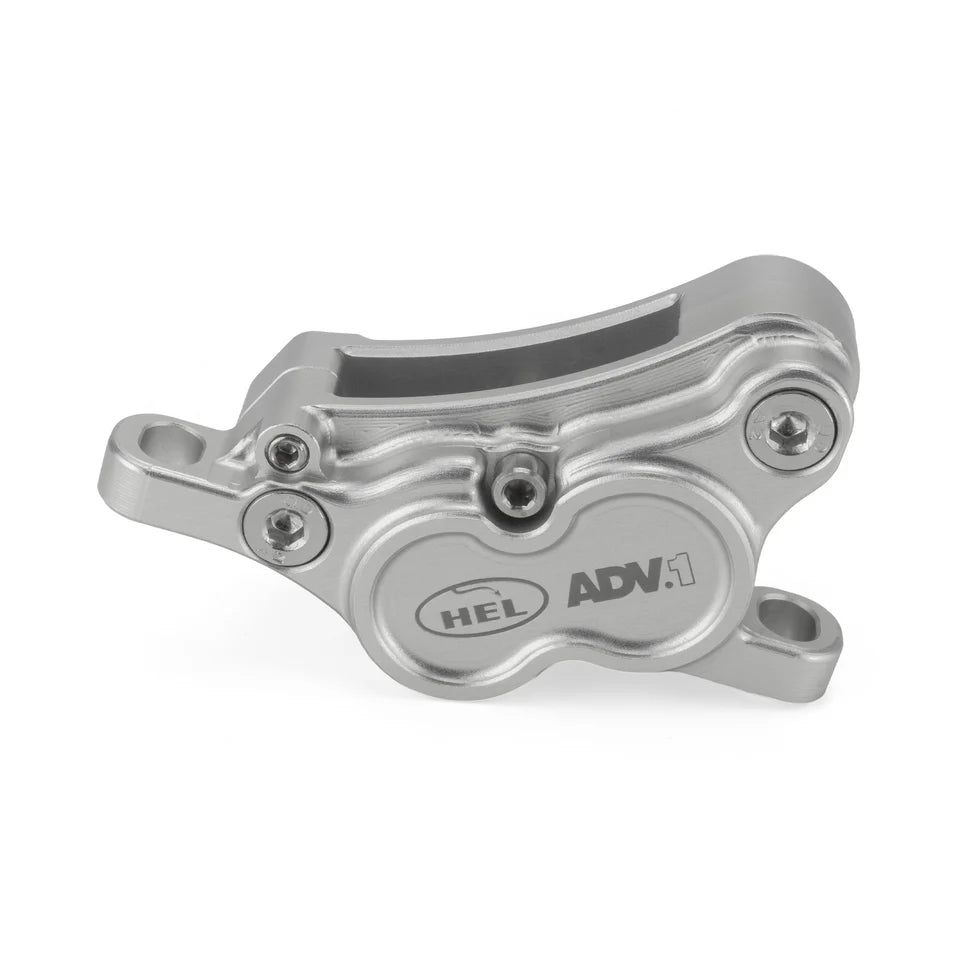

  • HEL Advocate 4-piston brake caliper in silver and grey showing stainless steel piston layout and free-flow design

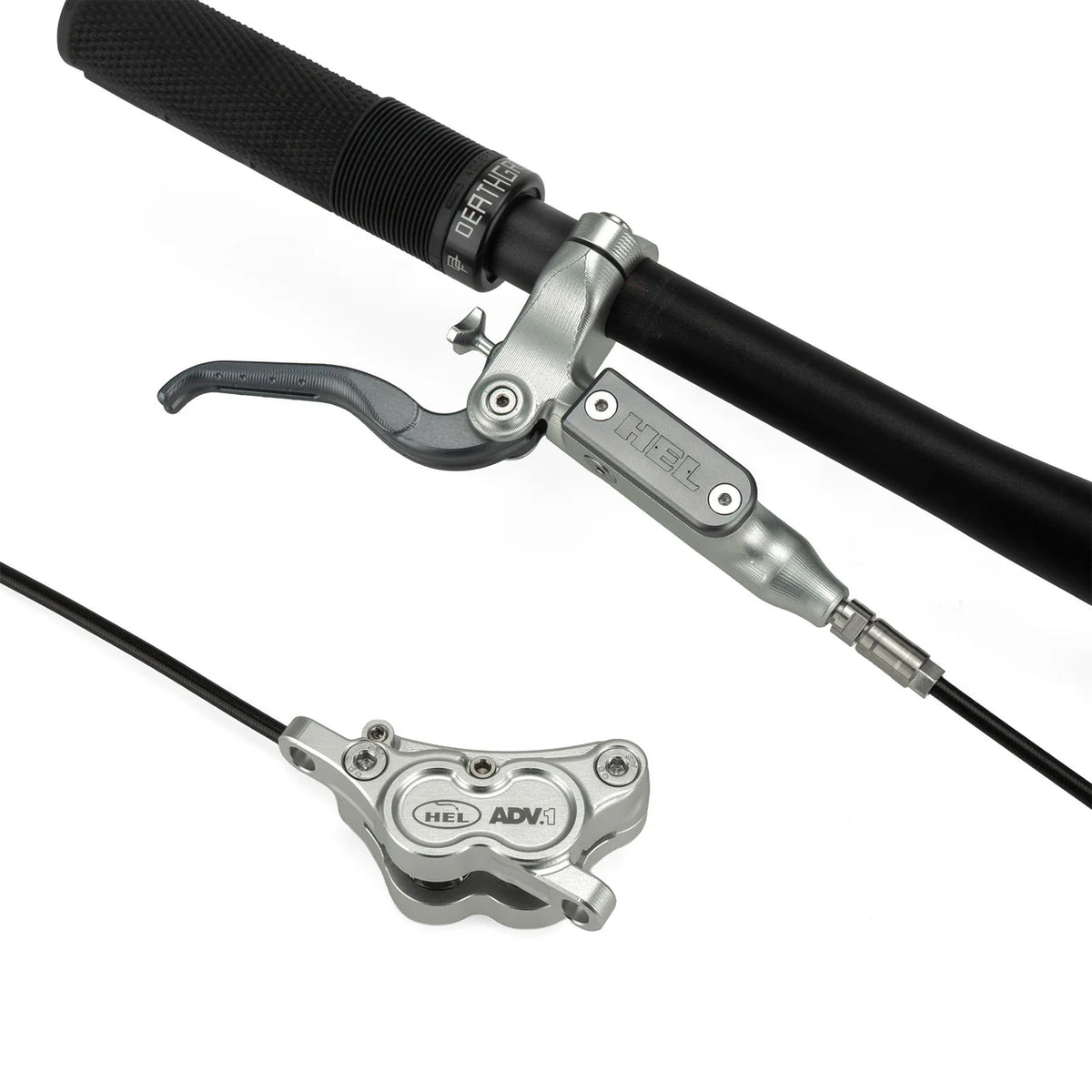

  • HEL Advocate 4-piston brake system in silver and grey showing complete kit including levers, calipers, pads, hoses and fittings
1 5

HEL Advocate 4-Piston Hydraulic Disc Brake System - Hyper Silver & Vapour Grey

HEL Advocate 4-Piston Hydraulic Disc Brake System - Hyper Silver & Vapour Grey

£699.00 GBP
£699.00 GBP
Promotion Épuisé
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.

🇪🇺 Good news for EU customers: No VAT or customs fees on orders under €150. All taxes are prepaid — there’s nothing more to pay when your order arrives.

  • For Downhill, Enduro, and e-MTB
  • Dependable & Consistent Stopping Power
  • Firm Lever Feel with Rapid Feedback
  • Consistent, Predictable Modulation
  • Free-Flow 2-Piece Caliper Design
  • Robust, Durable, and Built to Last
  • Lightweight Billet Aluminium - Not Cast
  • HEL Braided Hose Included as Standard
  • DOT 5.1 Brake Fluid Only
  • Entirely Manufactured in Devon, England
  • Built by Riders, Backed by Motorsport Heritage
  • Warranty & Crash Replacement Scheme
Afficher tous les détails
1 2

No secrets, only specs. Knowing your brakes is just as important as riding them.

SPECIFICATIONS

MASTER CYLINDER / LEVER

Type:Axial
Piston Size:10mm ⌀
Piston Material:Stainless Steel
Lever Adjustment:Tool-Free, 20-Point Click
Lever Span:35mm (Min. - Max.)
Bleed Port:M5 x 0.8mm
Fluid Compatibility: DOT 5.1 OnlyWeight(Excl. Hose): 155g
Finish:Hard Anodised
Material(Main): 6082-T6 Billet Aluminium
Material(Other): Stainless Steel

CALIPER

Fluid Design:Free-Flow
Piston Quantity:4
Piston Size:2x 17mm ⌀ & 2x 15mm ⌀
Piston Design:Solid, Castellated Top
Piston Material:Stainless Steel
Pad Shape:Shimano D-Type 03
Rotor Compatibility Diameter:180mm - 223mm
Rotor CompatibilityThickness:1.8mm - 2.3mm
PM Adapter Compatibility:HEL Advocate / Universal
Bleed Port:M5 x 0.8mm
Fluid Compatibility: DOT 5.1 OnlyWeight(Excl. Pads & Hose): 105g
Finish:Hard Anodised
Material(Main): 6082-T6 Billet Aluminium
Material(Other): Stainless Steel

HOSE + FITTING KIT

Construction:3-Layer Braided Stainless Steel
External Diameter:5.0mm / 0.19" ⌀
Frame Compatibility:Internal & External Routing*
Internal Material(Core): PTFE
External Material(Overbraid): Stainless Steel 304
External Material(Outer): PVC (Transparent or Coloured)
Colour Options:Various
Hose Fitting Solution:2-Piece
Hose Fitting Compatibility:HEL Advocate
Hose Fitting Material:Stainless Steel
Supplied Hose Length:2.7 metres (Uncut)

TOOLS REQUIRED

To install, bleed, and dial in your HEL Advocate brakes, you'll need:

Caliper Bleed Block (Supplied)
Allen Key:2.5mm / 3mm / 4mm / 5mm
Open-End Spanner:8mm (2) Hose Cutter or Side-Cutting Plier Hand Pick/Poking Tool Nitrile or Latex Gloves Wiping Cloths/Blue Roll Isopropyl Alcohol (Recommended) or Disc Brake Cleaner Brake Bleed Kit:M5 x 0.8mm (Recommended: SRAM Pro Bleed Kit or Park Tool BKD-1.2)

PAIRED FOR SUCCESS

We supply the same rotors, pads, and even tools that we use on the trail - making things easier for you and completing the package!

The HEL Advocate brake system represents two years of relentless dedication to design, engineering, and testing. Every step of the process has been brought from concept to reality in-house by our small and determined team who have designed, prototyped, CNC machined, hand-assembled and rigorously tested in the lab, on the trail, and in real race environments. The result is a system that proudly encapsulates HEL’s 25 years of motorsport heritage.

Purpose-built to meet the demands of downhill, enduro, and eMTB riding, the Advocate is HEL Mountain Bike’s most capable, robust, highest-performing brake system to date.

For trail and XC bikes, HEL is currently developing the Raiser — an ultra-lightweight, 2-piston brake system specifically designed for riders who demand maximum 2-piston stopping power and a compact footprint, when every gram counts.

Your bike, your style. If the standard HEL colour combos don’t match your vision, you can mix and match from 7 unique colours

❓ Frequently Asked Questions

Yes. HEL brakes are designed, CNC-machined, assembled, and tested in Devon, England by HEL Performance. Development and validation are carried out in-house, from lab testing to real trail and race use.

The HEL Advocate brake system is purpose-built for downhill, enduro, bike park, and full-power e-MTB riding. It is designed for riders who prioritise consistent lever feel, control, and fade resistance on long and demanding descents.

HEL Advocate brakes use DOT 5.1 brake fluid only. DOT fluid offers excellent high-temperature performance and consistency when braking repeatedly under heavy loads.

HEL Advocate brakes are supplied with Gorilla Brakes Enduro Pro Ultimate brake pads as standard, chosen to deliver consistent performance, controlled heat behaviour, and predictable modulation.

HEL’s Free-Flow caliper design focuses on even piston pressure and controlled heat management. This helps reduce fade and supports a consistent braking feel during long descents and repeated heavy braking.

Yes. The HEL Advocate brake system is well suited to full-power e-MTBs, where higher bike weight and sustained braking demand strong heat control and reliable stopping power.

Yes. HEL offers seven colour options, allowing you to mix and match components to suit your bike build at no extra cost.

Yes. Each HEL Advocate system is supplied as a complete brake package, including levers, calipers, hoses, pads, fittings, bleed block, titanium mounting bolts, and installation documentation.

Yes. HEL supplies rotors, brake pads, and tools designed to work as a complete system. Using matched components helps ensure consistent performance and easier setup.

The Advocate is optimised for gravity and heavier bikes. For trail and XC use, HEL is developing the Raiser, a lightweight 2-piston brake system designed for riders who want strong braking performance in a compact, low-weight format.

HEL brakes follow standard hydraulic brake maintenance procedures. Correct bedding-in, clean rotors, and proper bleeding with DOT 5.1 fluid are essential for optimal performance.
