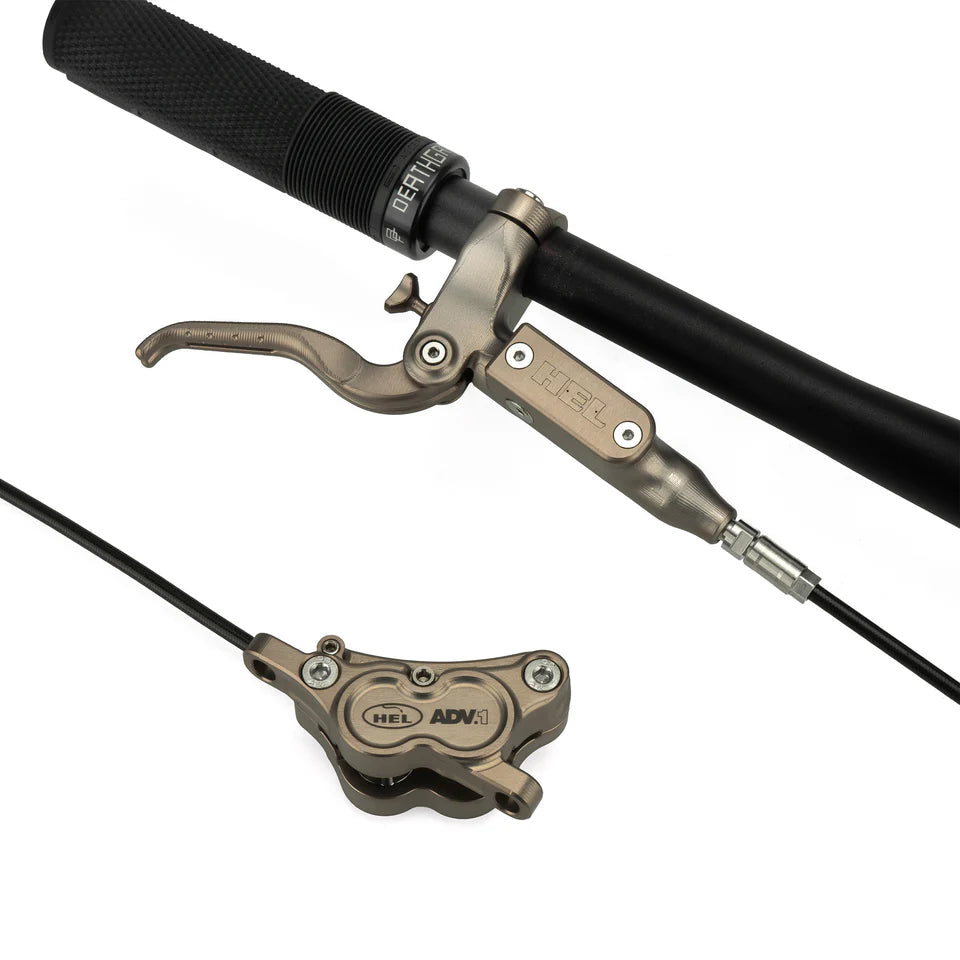

HEL Advocate 4-Piston Brake System — Vapour Grey & Forged Bronze

HEL Advocate 4-Piston Brake System — Vapour Grey & Forged Bronze

HEL Advocate four-piston hydraulic brakes in Vapour Grey & Forged Bronze, designed for downhill, enduro and e-MTB. Made in Devon from billet aluminium, with Free-Flow two-piece calipers, a firm lever feel and controlled modulation.

One front-and-rear system: two levers, two calipers and the hose and fitting kit. DOT 5.1 brake fluid only.

Regular price £699.00 GBP
Regular price Sale price £699.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

🚚 You’re £25.00 away from FREE FAST UK shipping

60 day returns for unused, uninstalled products. Lifetime warranty covers manufacturing and material defects, excluding normal wear. See the linked terms; statutory rights are unaffected.

Total for 1£699.00
View full details

HEL ADVOCATE · MADE IN DEVON

System overview

Brand / model
HEL Advocate ADV1
Configuration
Front and rear · four-piston calipers
Finish
Vapour Grey & Forged Bronze
Riding use
Downhill, enduro and e-MTB
Construction
6082-T6 billet aluminium · hard anodised
Brake fluid
DOT 5.1 only
Manufacture
Devon, England

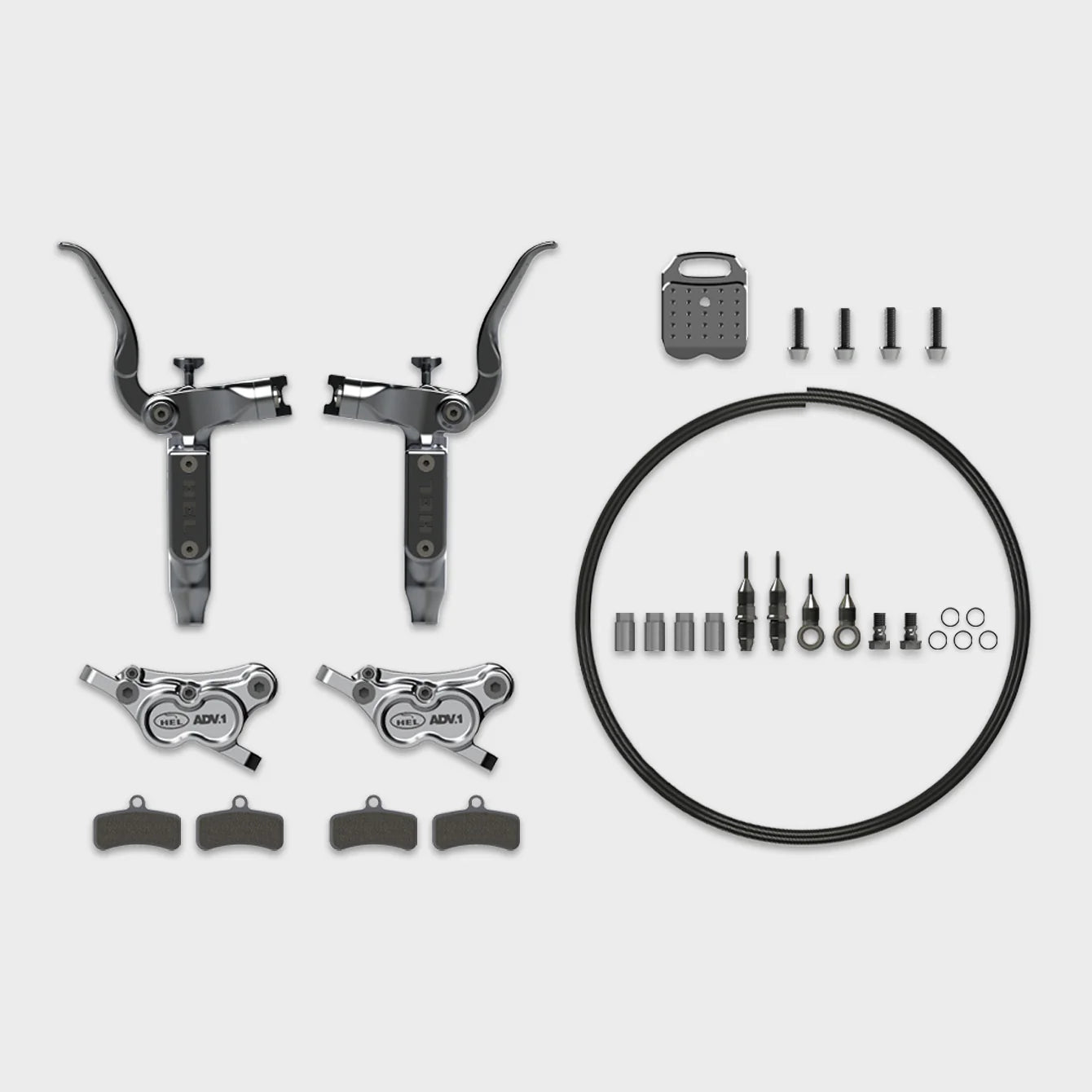

What’s included

  • 2 × axial master cylinders / levers
  • 2 × Free-Flow four-piston calipers
  • 2 × ceramic brake pad sets
  • 1 × braided hose and fitting kit — 2.7 m, uncut
  • 1 × billet bleed block
  • 4 × titanium caliper mounting bolts
  • Installation manual and warranty card

Check your rotor and mounting setup

Use DOT 5.1 brake fluid only. The calipers accept the listed 180–223 mm rotor diameters and 1.8–2.3 mm thicknesses. Check your frame and fork limits, post-mount adapter and hose routing before installation. Follow HEL’s installation and bleeding instructions.

Detailed specifications

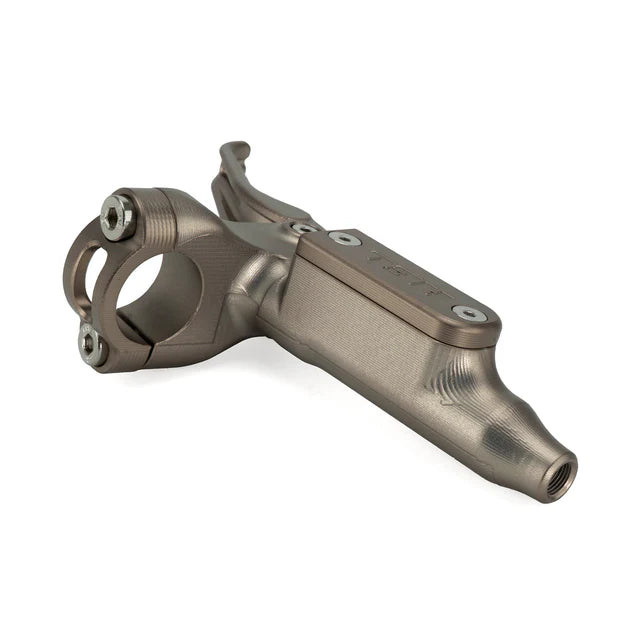

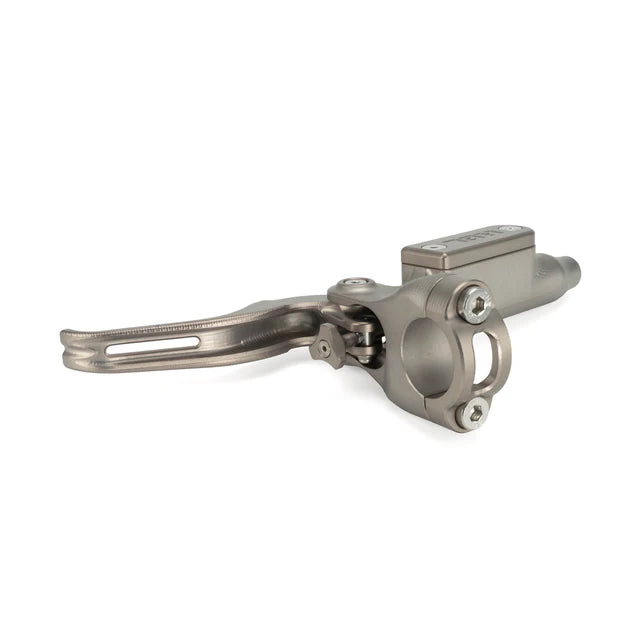

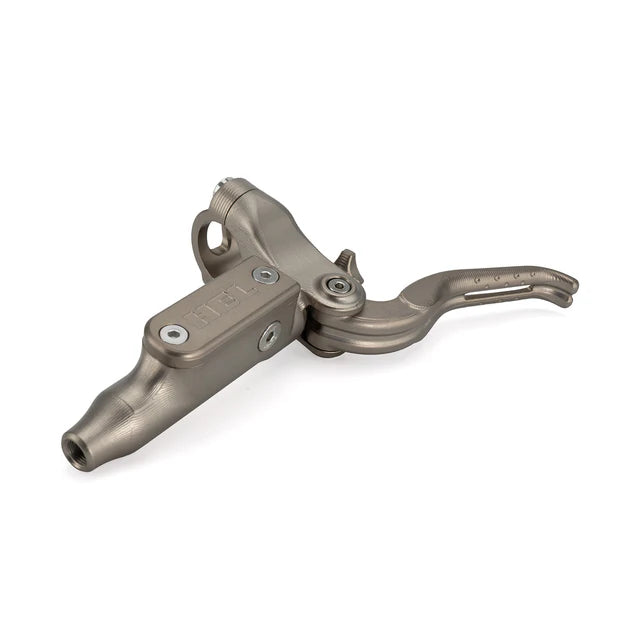

Master cylinder / lever
Type / piston
Axial · 10 mm diameter stainless-steel piston
Adjustment
Tool-free, 20-point click adjustment · 35 mm lever span (min.–max.)
Bleed port
M5 × 0.8 mm
Weight
155 g excluding hose
Materials
6082-T6 billet aluminium and stainless steel · hard-anodised finish

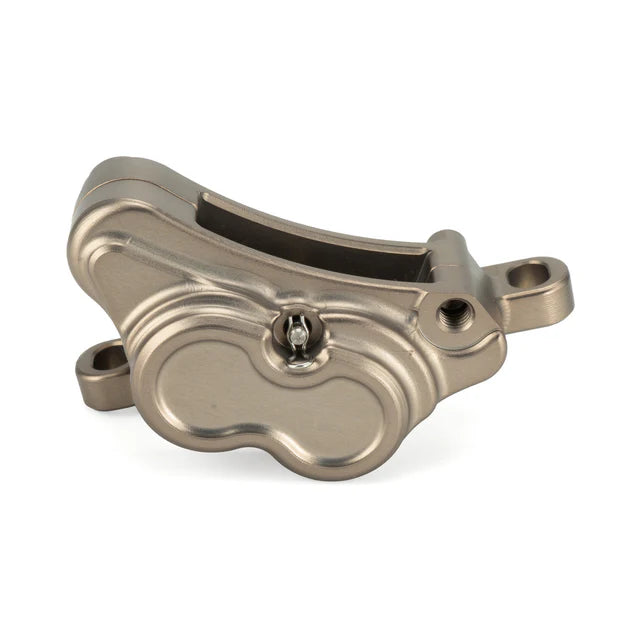

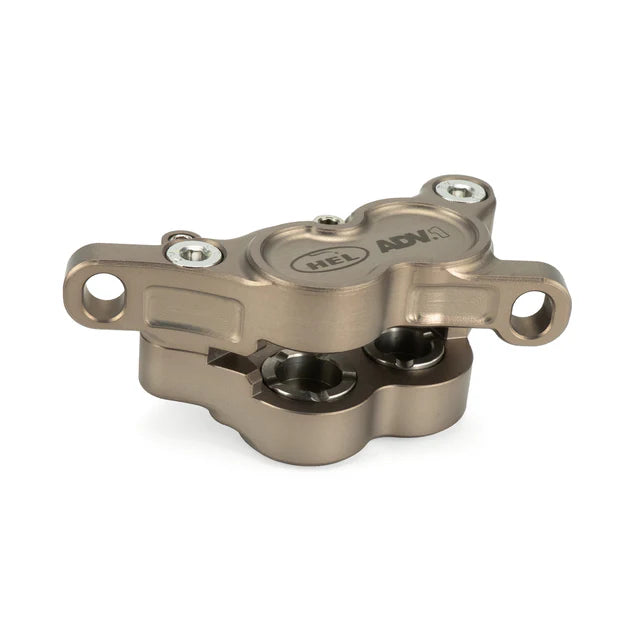

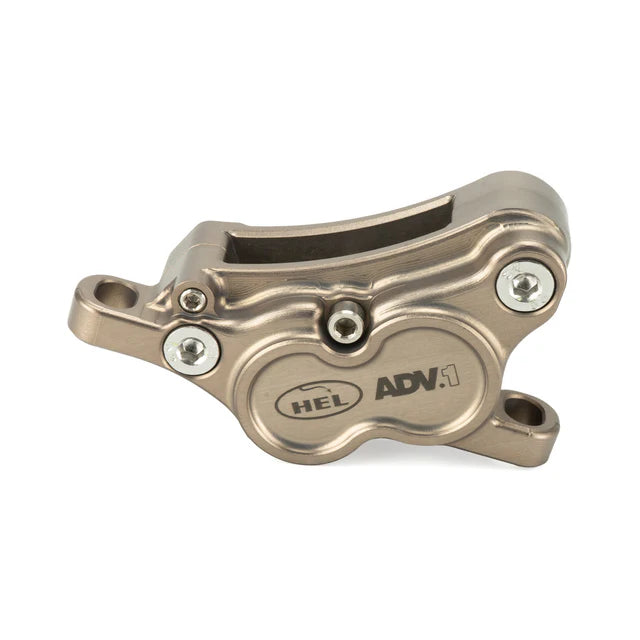

Caliper
Design
Free-Flow · four solid pistons with castellated tops
Pistons
2 × 17 mm and 2 × 15 mm diameter · stainless steel
Pad shape
Shimano D-Type 03
Rotor diameter / thickness
180–223 mm / 1.8–2.3 mm
Post-mount adapter
HEL Advocate / universal — match the required setup
Bleed port
M5 × 0.8 mm
Weight
105 g excluding pads and hose
Materials
6082-T6 billet aluminium and stainless steel · hard-anodised finish
Hose and fitting kit
Construction
Three-layer braided stainless steel
Length / outside diameter
2.7 m uncut / 5.0 mm
Routing
Internal and external — check frame requirements
Layers
PTFE core · 304 stainless-steel braid · PVC outer
Fittings
Two-piece stainless-steel fittings for HEL Advocate
Installation tools

The original installation list specifies the supplied bleed block; 2.5, 3, 4 and 5 mm Allen keys; two 8 mm open-end spanners; a hose cutter or side cutters; a pick; gloves; wiping cloths; isopropyl alcohol or disc brake cleaner; and a suitable bleed kit with M5 × 0.8 mm fittings. Follow HEL’s manual for the full fitting procedure.

HEL Advocate questions

Is this a front-and-rear set?

Yes. One system contains two levers/master cylinders and two four-piston calipers, plus two ceramic pad sets, a 2.7 m braided hose and fitting kit, billet bleed block, four titanium mounting bolts, an installation manual and warranty card.

Which brake fluid should I use?

HEL Advocate requires DOT 5.1 brake fluid only. Do not use mineral oil. Follow the HEL service instructions and use suitable bleeding equipment.

Which rotors and pads fit?

The listed rotor range is 180–223 mm diameter and 1.8–2.3 mm thickness. The specified pad shape is Shimano D-Type 03. Check the exact rotor, pad and mounting setup before ordering replacement parts.

Does the hose support internal routing?

The supplied uncut braided hose is 2.7 m long and has a 5 mm external diameter. The original specification lists internal and external routing; check your frame’s ports and routing requirements before fitting.

Need help with your HEL brakes?

Send us your bike model, rotor sizes and mounting details. For warranty and crash-replacement terms, use the HEL support link below.

Brake system / compatibility references

Brake system
HEL Advocate (ADV.1) · 4 pistons
Pad reference / shape
Shimano D-Type 03 pad shape
Rotor compatibility
180–223 mm diameter; 1.8–2.3 mm thickness
Brake fluid
DOT 5.1 only. Do not use mineral oil or silicone DOT 5.
Caliper mounting
Post Mount; use the correct HEL Advocate or compatible Post Mount adapter for your frame/fork and rotor size.
Hose / bleed connection
HEL Advocate-specific hose fittings; M5 × 0.8 mm bleed ports.

Check the frame and fork mounting standard, permitted rotor size and required adapters before ordering. Rotor compatibility alone does not confirm fit on your bike.
