Gorilla Brakes titanium hardware
Product specifications
- Material
- Grade 5 titanium
- Thread
- M5 × 0.8 mm
- Drive
- Torx T25
- Head type
- Button head
- Quantity
- 1 bolt, sold individually
- Finishes
- Silver, bronze, purple, blue, ice blue, gold and gold with PVD coating.
Choose your finish from the available options above.
Lengths and thread type
| Bolt length | Thread type |
|---|---|

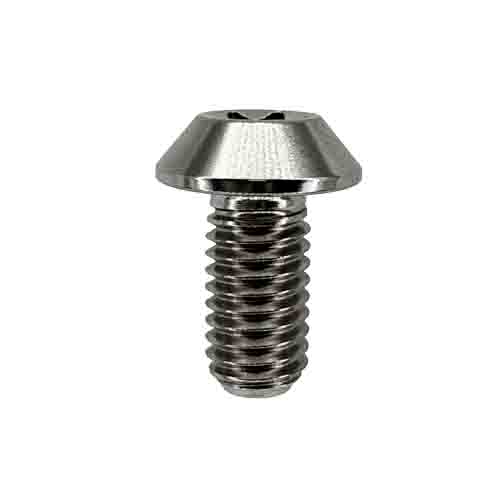

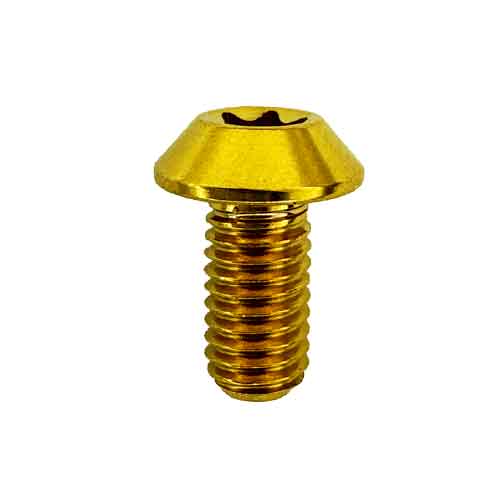

| 10 mm | Fully threaded |

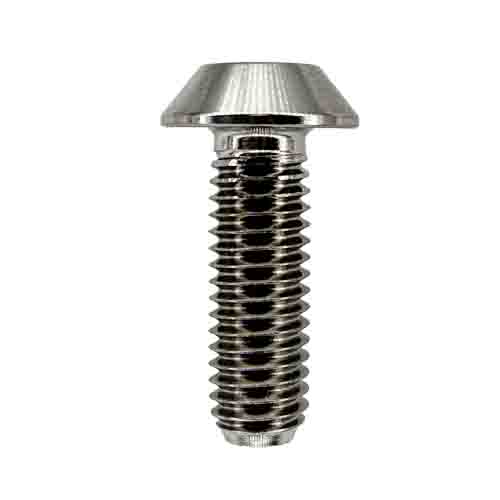

| 15 mm | Fully threaded |

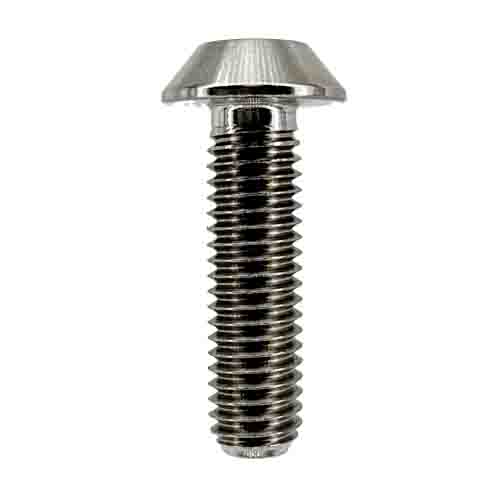

| 18 mm | Fully threaded |

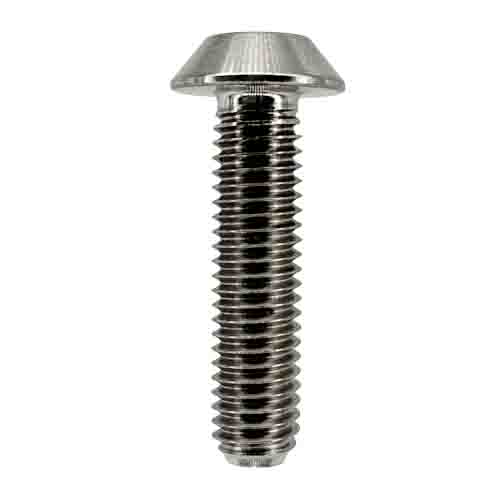

| 20 mm | Fully threaded |

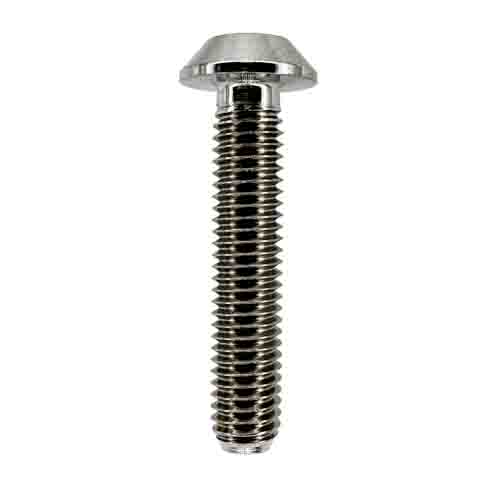

| 25 mm | Fully threaded |

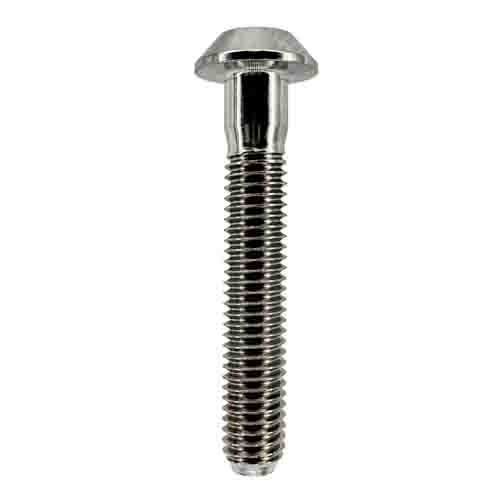

| 30 mm | 5 mm plain shank |

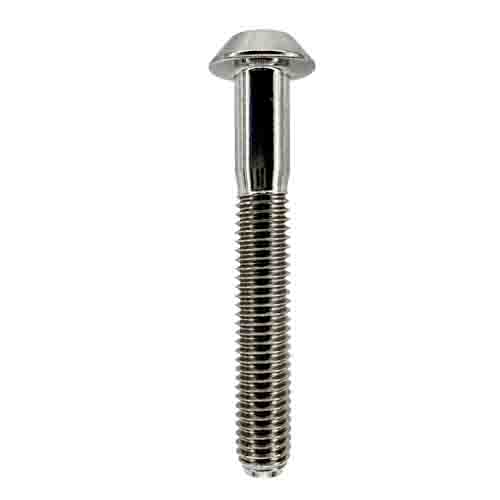

| 35 mm | 10 mm plain shank |

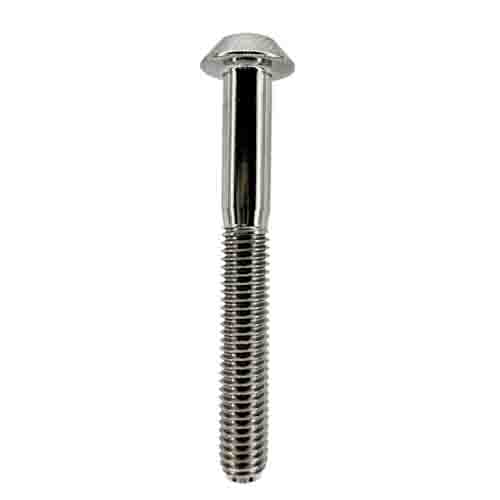

| 40 mm | 15 mm plain shank |
Check the fit before ordering
Check the M5 × 0.8 mm thread, required bolt length and button head profile against your component. Match the head seat and available clearance, then follow the component manufacturer’s fitting instructions. For bolts over 25 mm, also check that the plain shank suits the mounting point.
Product video
Product questions
Which tool does this bolt use?
This M5 button head bolt uses a Torx T25. M5 identifies the thread size, not the tool size.
How many bolts are included?
Each item is one bolt. Select the length and finish, then enter the number of bolts you need in the quantity box.
How much plain shank does each longer bolt have?
Bolts longer than 25 mm have 25 mm of thread. 30 mm bolt: 5 mm plain shank; 35 mm bolt: 10 mm plain shank; 40 mm bolt: 15 mm plain shank.
Will this bolt fit my component?
Check the M5 × 0.8 mm thread, required bolt length and button head profile against your component. Match the head seat and available clearance, then follow the component manufacturer’s fitting instructions. For bolts over 25 mm, also check that the plain shank suits the mounting point.
Gorilla Brakes warranty
Lifetime warranty against manufacturing and material defects for products purchased directly from Gorilla Brakes. Terms and statutory rights apply.
Need help choosing?
Send us your component model, a photo of the original part and its measurements.
Hardware / fitment references
- Size / component references
- M5 × 0.8 mm
- Lengths offered
- 10, 15, 18, 20, 25, 30, 35, 40 mm
- Tool
- Torx T25
Match the thread diameter and pitch, required length, head seat and clearance. For lengths over 25 mm, check the plain-shank information above. Follow the component manufacturer’s installation instructions.
